Profile Measurement System
轮廓测量系统

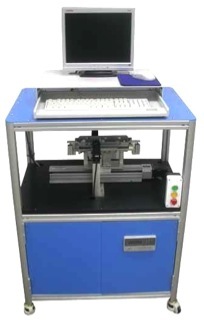

Profile Measurement System is a PC-based measurement system integrated with a Keyence Thrubeam Laser Sensor for the profile scanning of the Printer Frame that sits on a rotatable clamping jig which is mounted on a linear motion stage. The operator just put the Printer Frame on the clamping jig and press a button, the system will automatically
-
1.clamp and scan it from one end to the other end while the linear stage moving.
-
2.rotate the clamping jig
-
3.scan it again from one end to the other end while the linear stage moving
-
4.unclamp
-
5.display the measurement results, plot a chart, and provide the statistics.
Rotatable Clamping Jig
Scanning the profile from one end to the other end
